Cillium 시스템 요구사항 점검 자동화

Cillium 시스템 요구사항

https://docs.cilium.io/en/stable/operations/system_requirements/

• AMD64 또는 AArch64 CPU 아키텍처
• Linux 커널 5.4 이상 또는 동등 버전
• 커널 구성 옵션 활성화
• 고급 기능 동작을 위한 최소 커널 버전
• Cilium 동작(Node 간)을 위한 방화벽 규칙
• Mounted eBPF filesystem
• Privileges

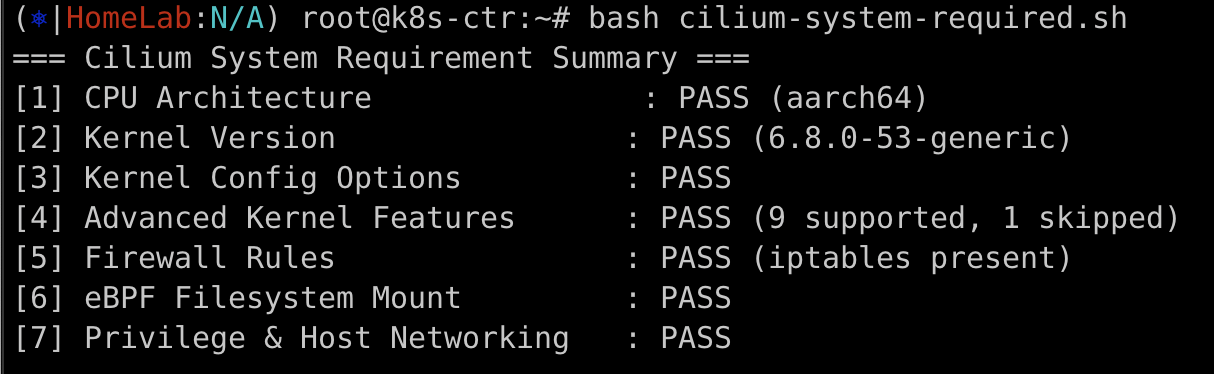

스크립트 실행 결과

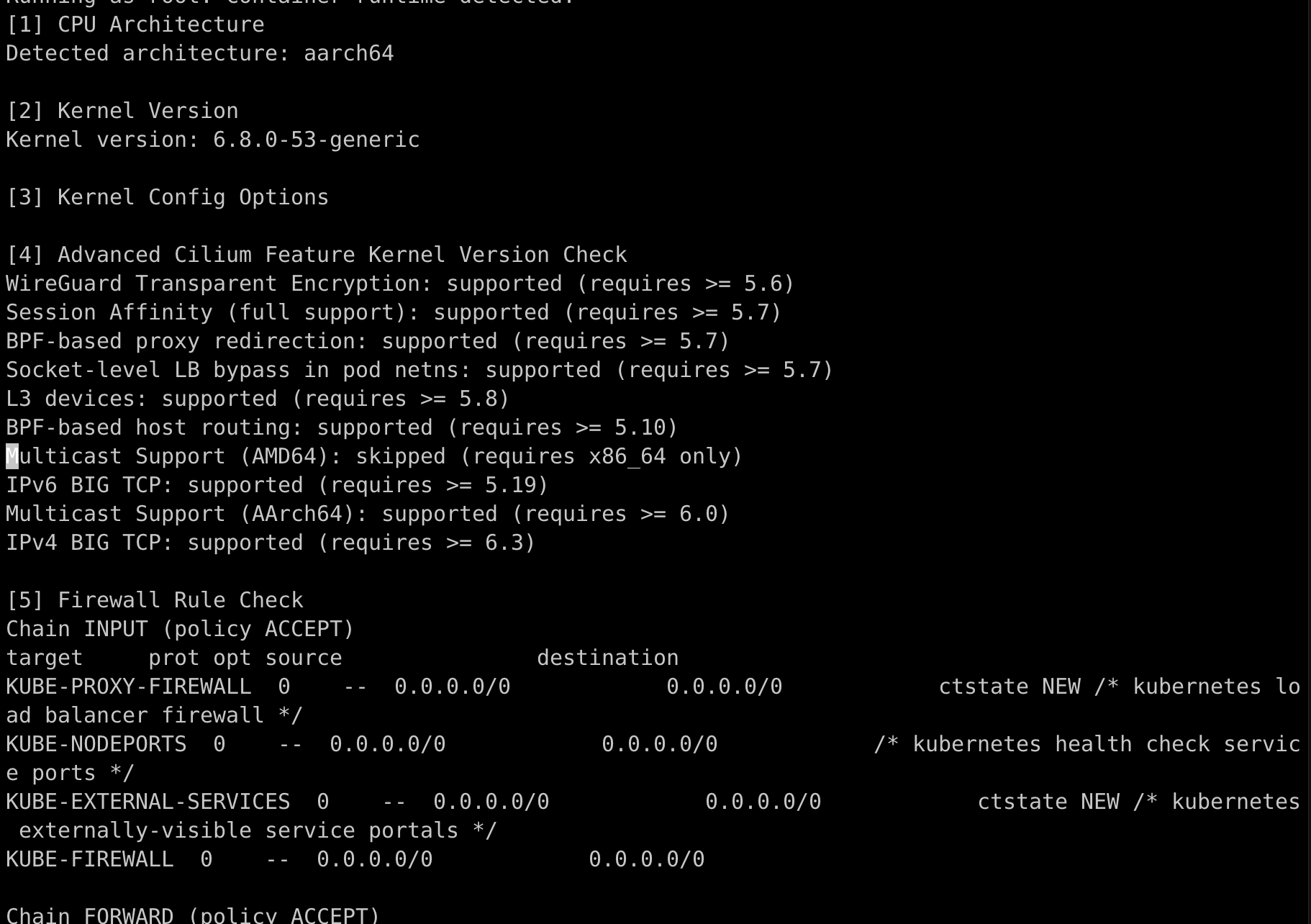

Summary 는 출력, 상세로그는 .log 파일로 저장.

자동화 스크립트 최종

#!/bin/bash

LOG_FILE="cilium_system_check.log"
exec 3>&1  # stdout 백업

declare -A RESULTS

log() {
  echo "$@" >> "$LOG_FILE"
}

get_kernel_version_number() {
  uname -r | awk -F. '{printf("%d%02d\n", $1, $2)}'
}

CURRENT_KERNEL=$(get_kernel_version_number)

# [1] CPU Architecture
log "[1] CPU Architecture"
ARCH=$(uname -m)
log "Detected architecture: $ARCH"
if [[ "$ARCH" == "x86_64" || "$ARCH" == "aarch64" ]]; then
  RESULTS[arch]="PASS ($ARCH)"
else
  RESULTS[arch]="FAIL ($ARCH not supported)"
fi

# [2] Kernel Version
log ""
log "[2] Kernel Version"
KERNEL_VERSION=$(uname -r)
log "Kernel version: $KERNEL_VERSION"
KERNEL_MAJOR=$(echo "$KERNEL_VERSION" | cut -d. -f1)
KERNEL_MINOR=$(echo "$KERNEL_VERSION" | cut -d. -f2)
if (( KERNEL_MAJOR > 5 || (KERNEL_MAJOR == 5 && KERNEL_MINOR >= 4) )); then
  RESULTS[kernel]="PASS ($KERNEL_VERSION)"
else
  RESULTS[kernel]="FAIL ($KERNEL_VERSION < 5.4)"
fi

# [3] Kernel Config Options
log ""
log "[3] Kernel Config Options"

CONFIG_PATH="/boot/config-$(uname -r)"
if [ ! -f "$CONFIG_PATH" ]; then
  log "Kernel config not found: $CONFIG_PATH"
  RESULTS[config]="FAIL (no config file)"
else
  REQUIRED_CONFIGS=(
    # eBPF / Core
    CONFIG_BPF
    CONFIG_BPF_SYSCALL
    CONFIG_BPF_JIT
    CONFIG_NET_CLS_BPF
    CONFIG_NET_CLS_ACT
    CONFIG_NET_SCH_INGRESS
    CONFIG_CRYPTO_SHA1
    CONFIG_CRYPTO_USER_API_HASH
    CONFIG_CGROUPS
    CONFIG_CGROUP_BPF
    CONFIG_PERF_EVENTS
    CONFIG_SCHEDSTATS

    # Tunneling / Routing
    CONFIG_VXLAN
    CONFIG_GENEVE
    CONFIG_FIB_RULES

    # L7 / FQDN Policy
    CONFIG_NETFILTER_XT_TARGET_TPROXY
    CONFIG_NETFILTER_XT_TARGET_MARK
    CONFIG_NETFILTER_XT_TARGET_CT
    CONFIG_NETFILTER_XT_MATCH_MARK
    CONFIG_NETFILTER_XT_MATCH_SOCKET

    # Netkit (Optional)
    CONFIG_NETKIT
  )

  MISSING=0
  for opt in "${REQUIRED_CONFIGS[@]}"; do
    if ! grep -Eq "^$opt=[ym]" "$CONFIG_PATH"; then
      log "$opt: not set"
      ((MISSING++))
    fi
  done

  if (( MISSING == 0 )); then
    RESULTS[config]="PASS"
  else
    RESULTS[config]="FAIL ($MISSING missing options)"
  fi
fi

# [4] Advanced Cilium Feature Kernel Version Check
log ""
log "[4] Advanced Cilium Feature Kernel Version Check"

IFS="|"
FEATURES=(
  "WireGuard Transparent Encryption|5.6|"
  "Session Affinity (full support)|5.7|"
  "BPF-based proxy redirection|5.7|"
  "Socket-level LB bypass in pod netns|5.7|"
  "L3 devices|5.8|"
  "BPF-based host routing|5.10|"
  "Multicast Support (AMD64)|5.10|x86_64"
  "IPv6 BIG TCP|5.19|"
  "Multicast Support (AArch64)|6.0|aarch64"
  "IPv4 BIG TCP|6.3|"
)

SUPPORTED=0
FAILED=0
SKIPPED=0

for entry in "${FEATURES[@]}"; do
  read -r NAME VERSION ARCH_REQ <<< "$entry"
  VERSION_INT=$(echo "$VERSION" | awk -F. '{printf("%d%02d", $1, $2)}')

  if [[ -n "$ARCH_REQ" && "$ARCH" != "$ARCH_REQ" ]]; then
    log "$NAME: skipped (requires $ARCH_REQ only)"
    ((SKIPPED++))
    continue
  fi

  if (( CURRENT_KERNEL >= VERSION_INT )); then
    log "$NAME: supported (requires >= $VERSION)"
    ((SUPPORTED++))
  else
    log "$NAME: not supported (requires >= $VERSION)"
    ((FAILED++))
  fi
done
unset IFS

if (( FAILED == 0 )); then
  RESULTS[features]="PASS ($SUPPORTED supported, $SKIPPED skipped)"
else
  RESULTS[features]="FAIL ($FAILED failed, $SUPPORTED supported, $SKIPPED skipped)"
fi

# [5] Firewall Rules
log ""
log "[5] Firewall Rule Check"
if command -v iptables >/dev/null; then
  IPTABLES_OUTPUT=$(iptables -L -n)
  log "$IPTABLES_OUTPUT"
  if echo "$IPTABLES_OUTPUT" | grep -q "ACCEPT"; then
    RESULTS[firewall]="PASS (iptables present)"
  else
    RESULTS[firewall]="FAIL (no ACCEPT rules)"
  fi
else
  log "iptables not found"
  RESULTS[firewall]="FAIL (iptables missing)"
fi

# [6] eBPF Filesystem Mount
log ""
log "[6] eBPF Filesystem Mount"
if mount | grep -q "/sys/fs/bpf"; then
  log "/sys/fs/bpf is mounted"
  RESULTS[ebpf]="PASS"
else
  log "/sys/fs/bpf is not mounted"
  RESULTS[ebpf]="FAIL"
fi

# [7] Privilege & Host Networking
log ""
log "[7] Privilege & Host Networking"
if [ "$EUID" -ne 0 ]; then
  log "Not running as root"
  RESULTS[priv]="FAIL (not root)"
else
  if command -v docker &>/dev/null || command -v containerd &>/dev/null || command -v crictl &>/dev/null; then
    log "Container runtime found"
    RESULTS[priv]="PASS"
  else
    log "No container runtime"
    RESULTS[priv]="FAIL (no container runtime)"
  fi
fi

# 요약 출력 (콘솔만)
echo "=== Cilium System Requirement Summary ===" >&3
printf "[1] CPU Architecture               : %s\n" "${RESULTS[arch]}" >&3
printf "[2] Kernel Version                : %s\n" "${RESULTS[kernel]}" >&3
printf "[3] Kernel Config Options         : %s\n" "${RESULTS[config]}" >&3
printf "[4] Advanced Kernel Features      : %s\n" "${RESULTS[features]}" >&3
printf "[5] Firewall Rules                : %s\n" "${RESULTS[firewall]}" >&3
printf "[6] eBPF Filesystem Mount         : %s\n" "${RESULTS[ebpf]}" >&3
printf "[7] Privilege & Host Networking   : %s\n" "${RESULTS[priv]}" >&3

echo "" >&3
echo "Detailed logs saved to: $LOG_FILE" >&3
